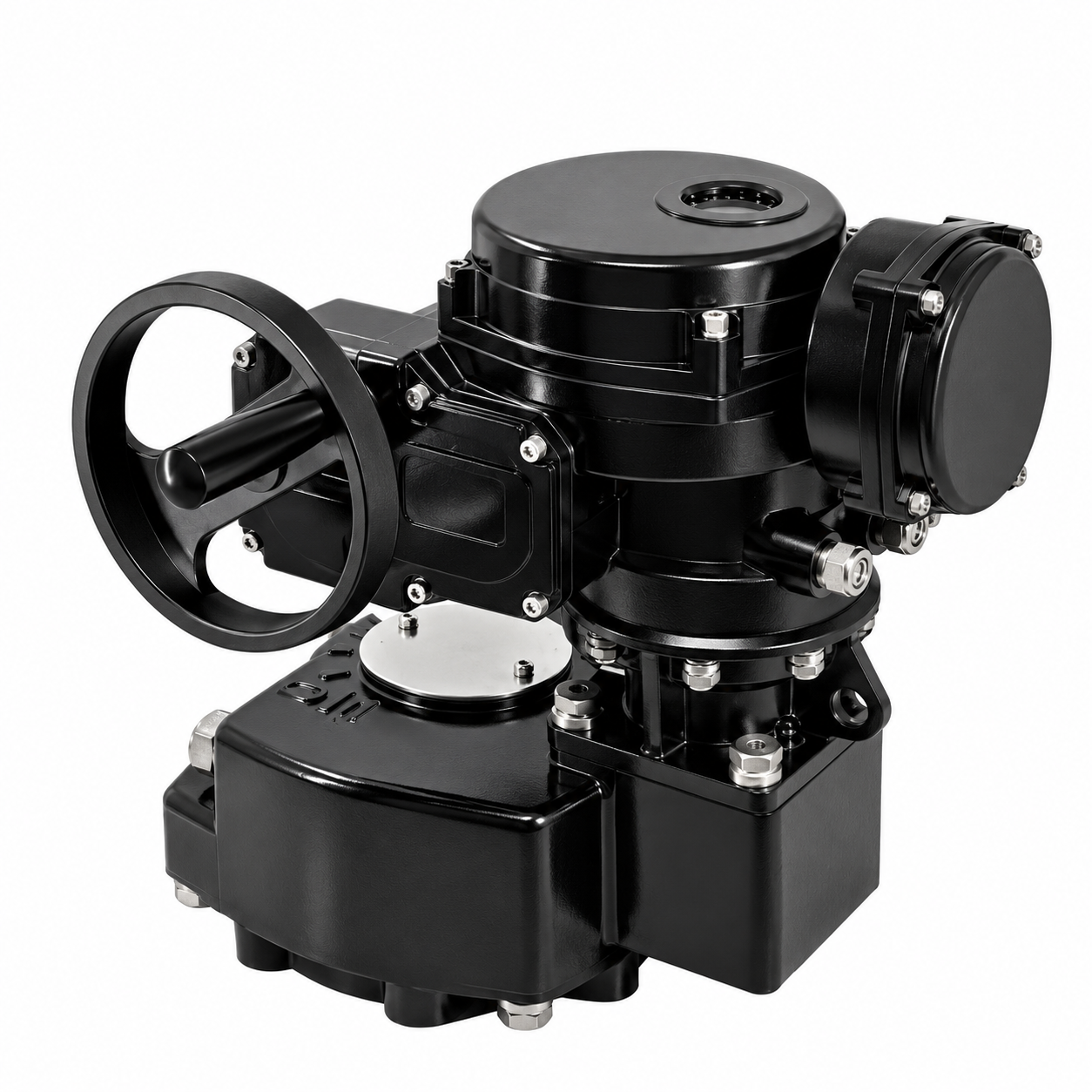

Modulting BFVAH High-Performance Butterfly Valve Actuator

Pre-order via Add to Quote

Specifications

Torque: 50~6000Nm
Medium and temp.: Cold or hot water, -10~120°C
Butterfly valve connection: comply with ISO5211
Angle of rotation: 90°
Running time: See Models. 60Hz is 5/6 times of 50Hz
Position indicator: 3D Dual color ribbon position indicator
Power: 220VAC±10%, 50/60Hz
Consumption: see details in Models
Power protection: 1500V/1 min.
Insulated resistance: 100MΩ/500VDC
Control signal: ON/OFF: on/off, 3 pos;

Modulating: 4~20mA (default) /0~10V/2~10V/ 0~20mA

Feedback signal: ON/OFF:2(dry contact + wet contact) x SPDT aux. switch, 250VAC/5A;

Modulating: 4~20mA (default) /0~10V/ 2~10V/ 0~20mA

1(dry contact) x SPDT aux. switch, 250VAC/5A

Status of power failure: Hold
Status of signal failure: 4~20mA/2~10V: open/close/hold, can be set; 0~10V: close
Moisture protect: heater of 220VAC/25W and breather valve
Motor protect: Class F insulated, with overheat protector, start temp. at 125±5°C
Number of runs test: inside counter (200Nm+ actuators)
Electrical connection: Screw terminal
Cable Interface: 2-M20x1.5
Work temp.: -25~70°C
Materials: Aluminum alloy enclosure with polyester epoxy powder coating
Protection: IP67
Weight: See Dimensions
Approval: CE

Add to quote

The Modulating BFVAH High-Performance Butterfly Valve Actuator is specially designed for reliable control of butterfly valves used in various HVAC systems and equipment. It is compatible with Fluxera BFV butterfly valves as well as suitable butterfly valves from other brands. Featuring an ISO 5211 compliant flange, the actuator can be connected to butterfly valves easily and securely. Its high-efficiency transmission mechanism provides smooth operation with structural self-locking, while the uniquely designed modulating cam enables more accurate valve control.

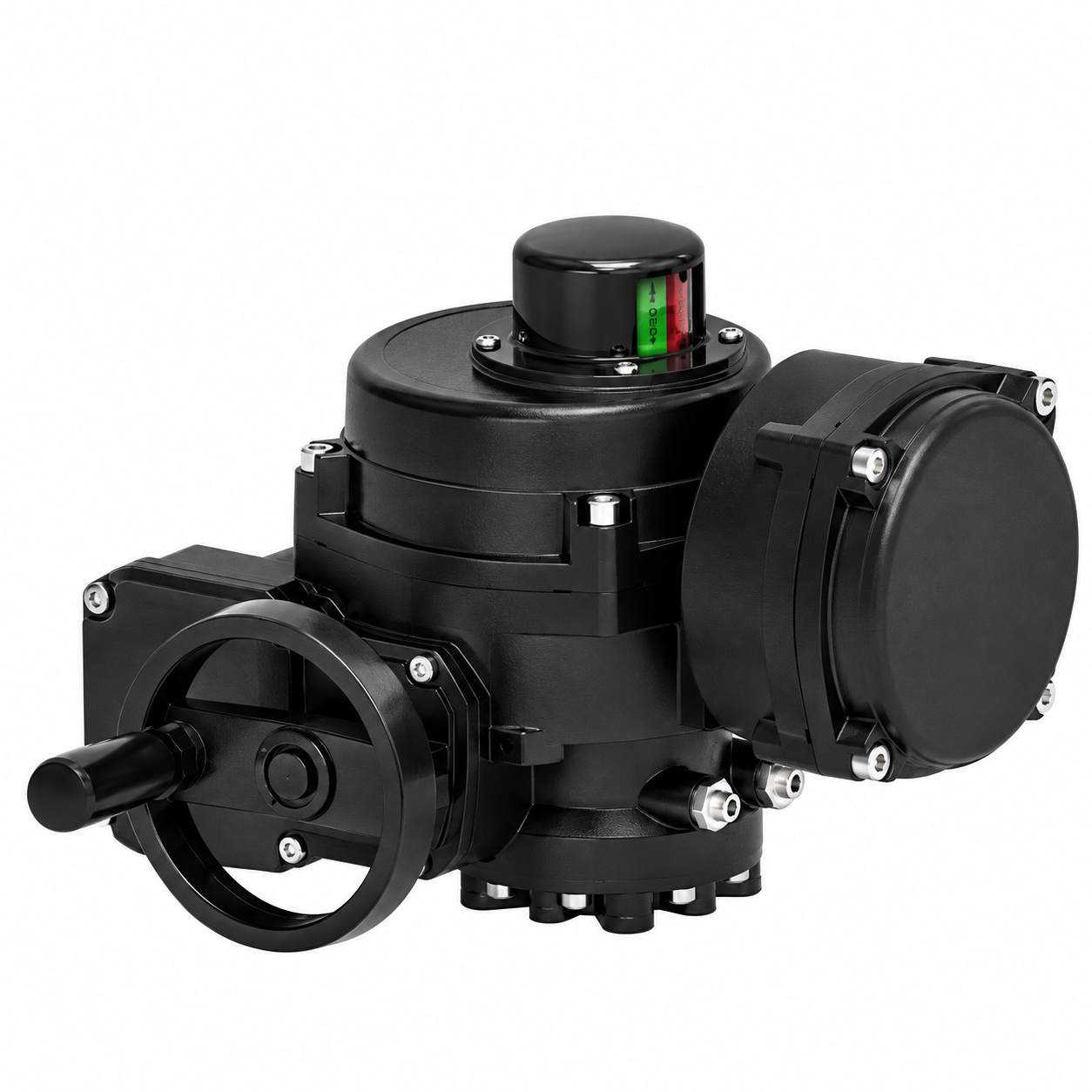

The BFVAH is equipped with a 3D dual-color ribbon position indicator, providing clear visual indication of the valve position. For convenient operation during power failures, the actuator can be manually operated using the integrated mechanical handwheel. Its condensation protection system uses heating and dehumidification to help prevent moisture-related electrical failures, ensuring dependable operation in varying HVAC environments. The actuator provides high-accuracy valve position control of up to 1%, supporting precise regulation and consistent system performance.

For enhanced safety and durability, the BFVAH features an independent electrical unit design with a strong protective circuit to help ensure safe operation and extend service life. With a high IP67 protection rating, the actuator offers excellent protection against dust and water ingress, making it suitable for demanding HVAC applications.
