MFDP Multi-function Display Unit/Transmitter

MFDP Multi-function Display Unit/Transmitter

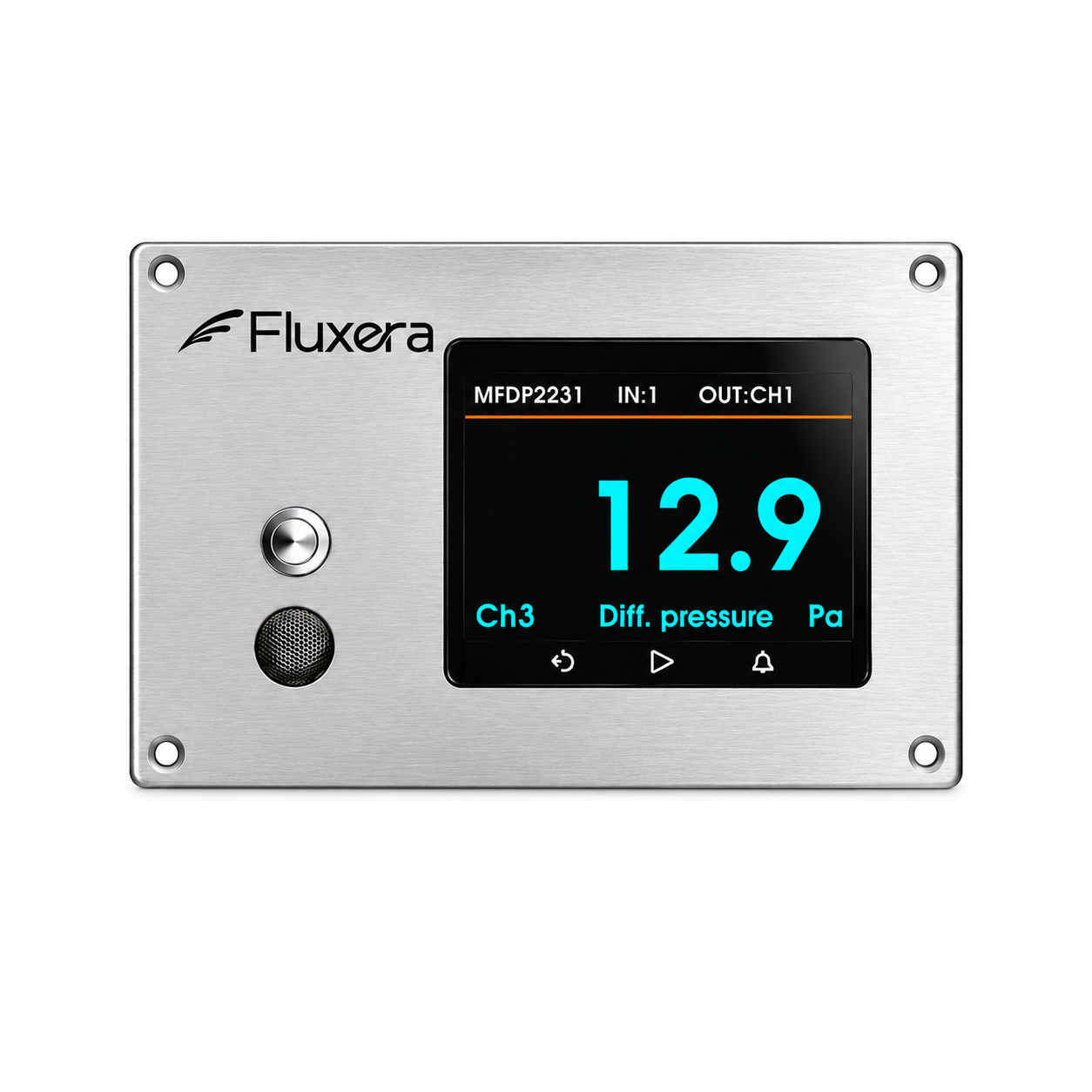

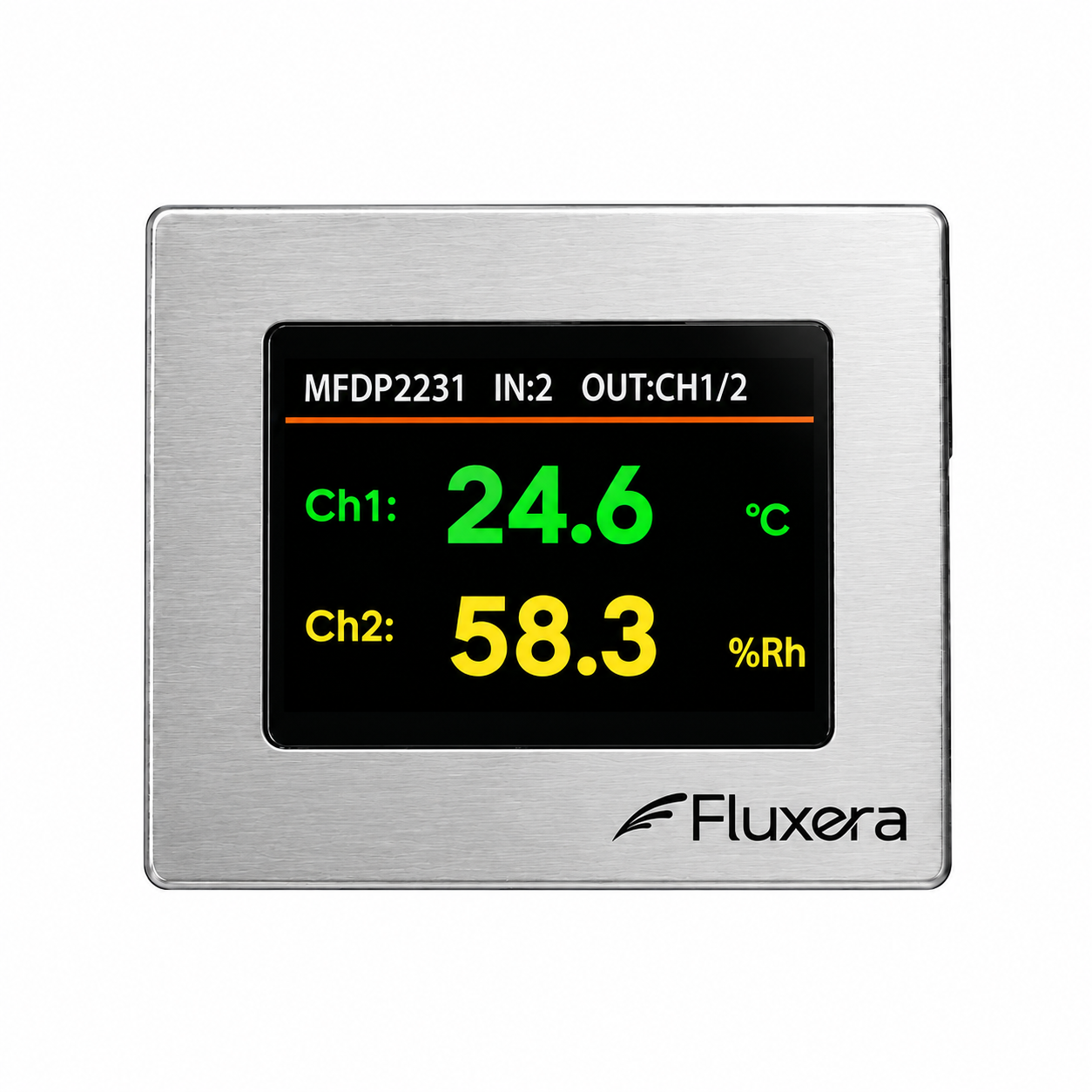

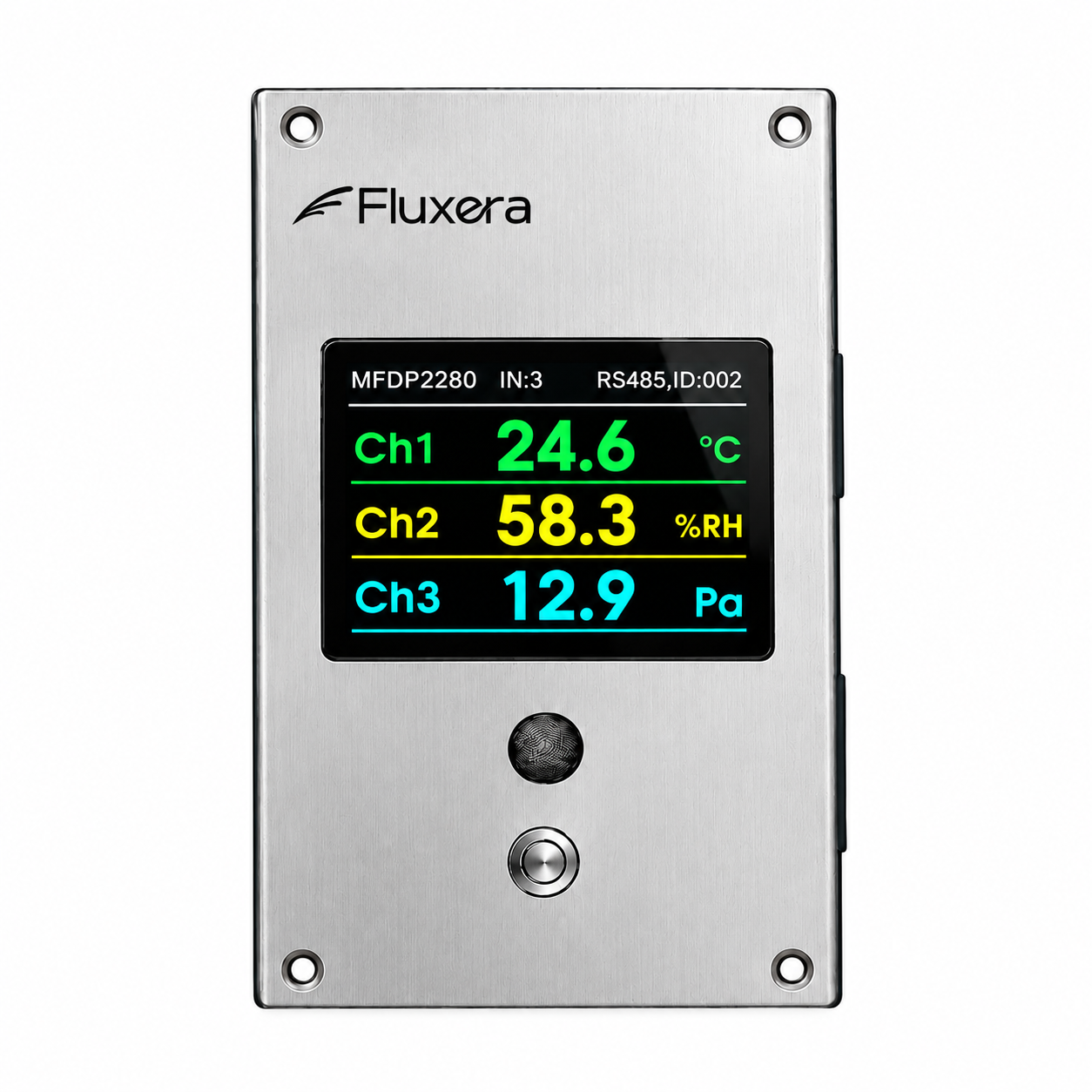

Engineered for critical environments requiring stringent hygiene, this multi-functional environmental monitor is designed for flush mounting to precisely measure and display temperature, humidity, and differential pressure. It features a rugged 316L stainless steel front panel integrated with a polycarbonate display window, utilizing a seamless, flat-surface architecture that prevents dust accumulation and stands up securely to aggressive chemical cleaning protocols involving standard detergents, sanitizers, and bactericides.

The unit is equipped with a large, high-brightness 3.2-inch color TFT LCD screen capable of displaying input channels one through three either simultaneously in parallel or through an alternating view. Data acquisition relies on high-accuracy, 100% field-changeable sensors. To accommodate diverse control schemes, the hardware supports multiple input and output configurations, including optional provisions for three analog 4 to 20mA or 0 to 10V input signals, as well as three optional 0 to 10V analog output channels.

For system networking and supervisory control, the device integrates optional RS485 communication utilizing the Modbus RTU protocol alongside optional front-panel key functions. This ensures native compatibility with any DDC, PLC, SCADA, or third-party data collection platform. By consolidating local measurement, visualization, and network connectivity into a single compact unit, it delivers an optimized performance-to-price ratio that directly replaces traditional, single-channel temperature, relative humidity, and differential pressure instruments.
