TE2/TTE2 Temperature Sensor/Transmitter
Pre-order via Add to Quote
Specifications:
TE2 series temperature sensor
- Sensor: High accuracy thermistor or RTD, see models
- Output: Thermistor or RTD, see models and resistance table
- Accuracy: Typical 0.2~0.5°C@ 25°C, see models
- Wiring: TE2,3: 2 wires, TE4: 2 or 3 wires
TTE2 series temperature transmitter
- Sensor: PT1000, Class A
- Range: See models
- Output: 4~20mA (2 wires) or 0-10VDC (3 wires)
- Output Load: ≤500Ω (current), ≥2KΩ (voltage)
- Accuracy: ≤±0.3°C @ 0~70°C,24VDC, see accuracy curve
- Power: 0-10V: 24VDC/24VAC±20%; 4-20mA: 24VDC±20%
- Work Temp.: -40~70°C, 0~95%RH (Non condensing)
- Storage Temperature: -30~70°C
- Housing: Fire retardant ABS+PC(UL94V-0)

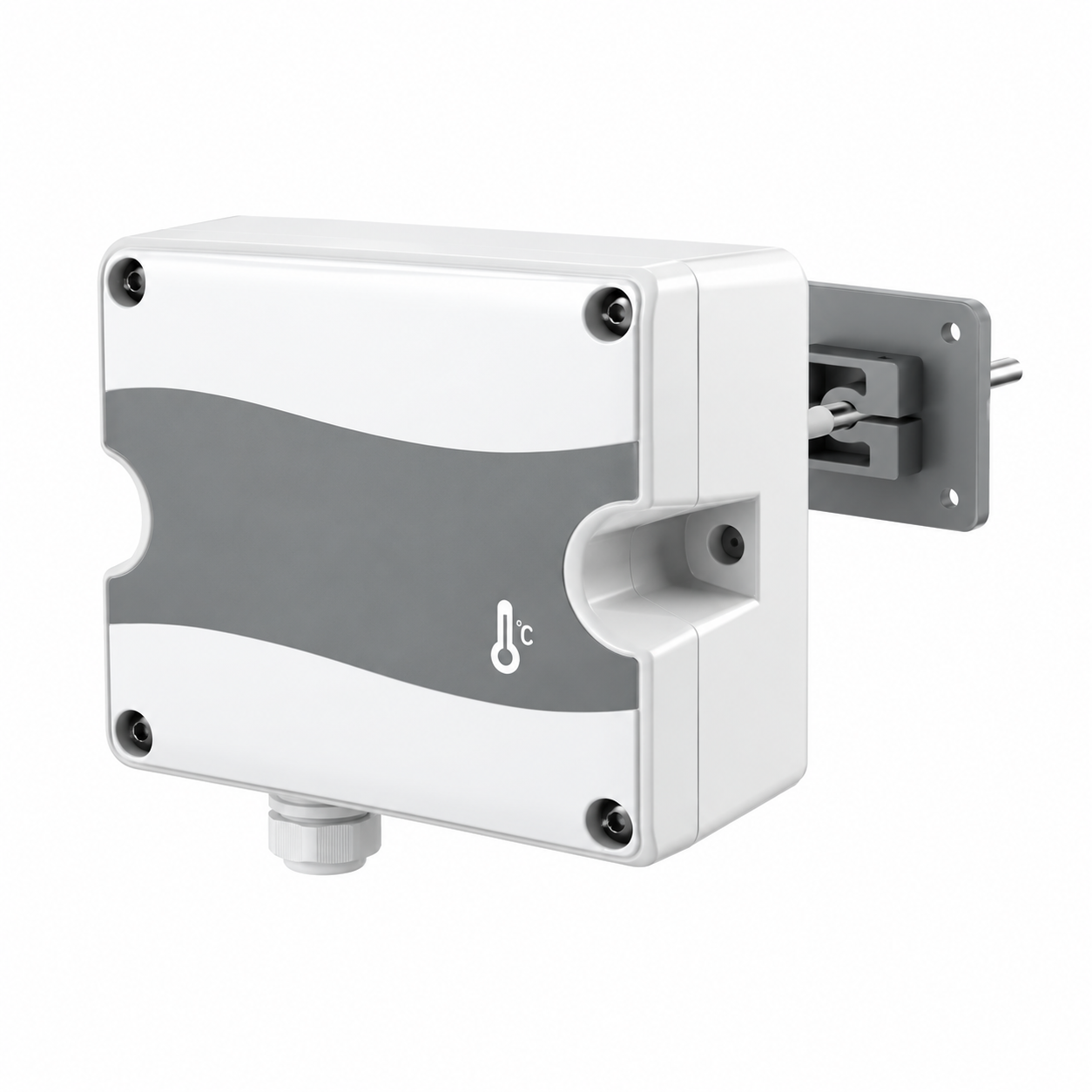

Duct Temperature Sensors/Transmitters (TE2, TTE2 Series): Designed to measure air temperature in air conditioning and ventilation ducts.
Fluxera Temperature Sensors and Transmitters are designed for accurate and reliable temperature measurement across HVAC, ventilation, and water systems. Available in duct, outdoor, and immersion configurations, these devices provide flexible sensing and output options for seamless integration with various automatic control systems.
Multiple Sensor Types: Supports thermistors and RTD elements to suit different temperature measurement requirements. Flexible Output Options: Available with current or voltage outputs for compatibility with a wide range of automation and control systems. Wide Temperature Range: Suitable for diverse indoor, outdoor, air-handling, and liquid temperature measurement applications. Fast Response: Enables prompt detection of temperature changes for effective monitoring and control. Versatile Installation: Multiple configurations and matching thermowells are available to accommodate different installation requirements and pipe sizes.
