ASW / ASL – ASME
Pre-order via Add to Quote
Specifications:
STANDARD FEATURES AND BENEFITS OF AIR SEPARATORS :
• ASME CODE SECTION VIII, DIV. 1 – UM STAMPED; U STAMPED
• Max working pressure: 125 psi (150 psi up to ASL/ASW-050)
• Max working temperature: + 375°F (+ 190°C)
• Carbon steel construction
• Removable heavy duty AISI 304 stainless steel strainer (ASW Series only)
• FINISH: “automotive” grey finish paint

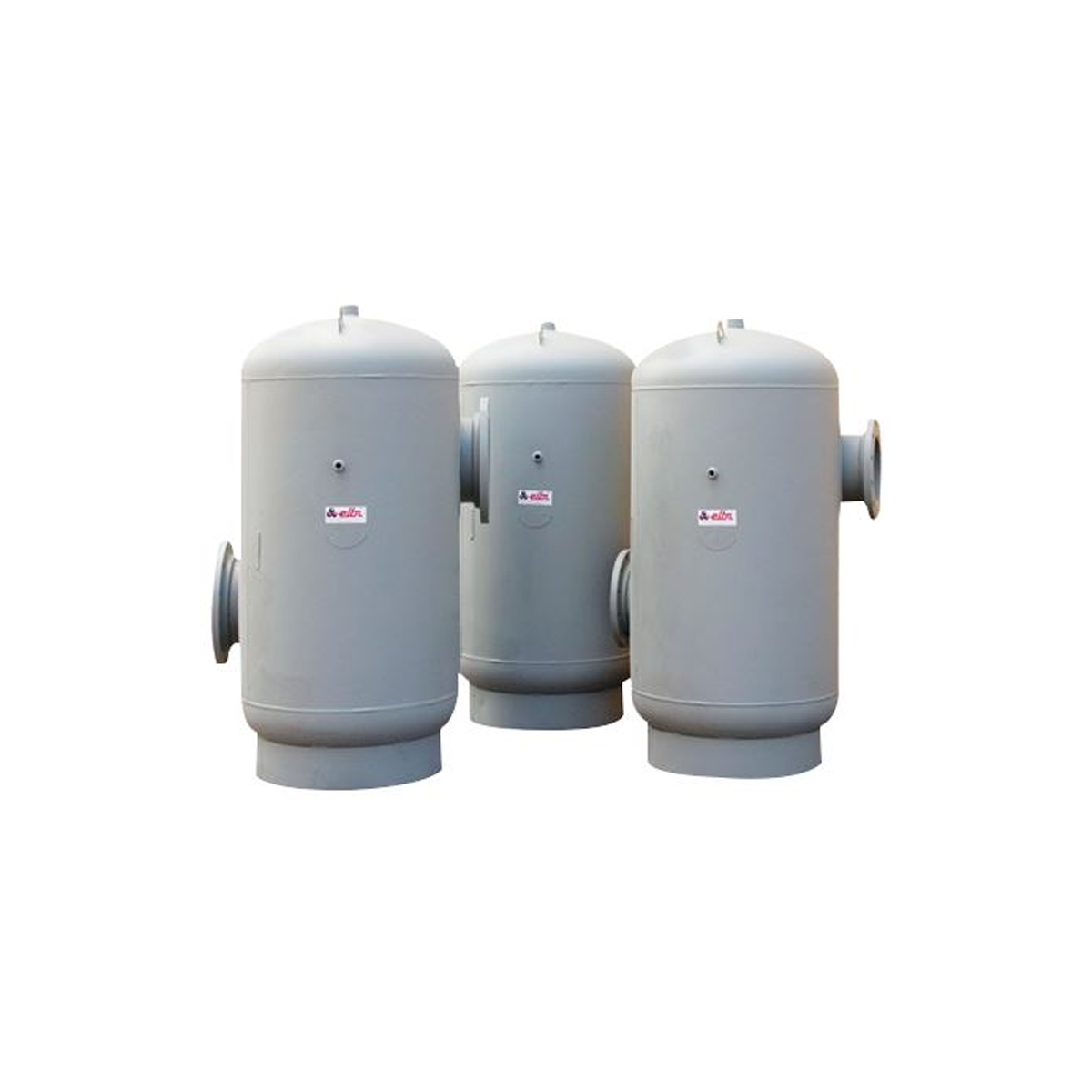

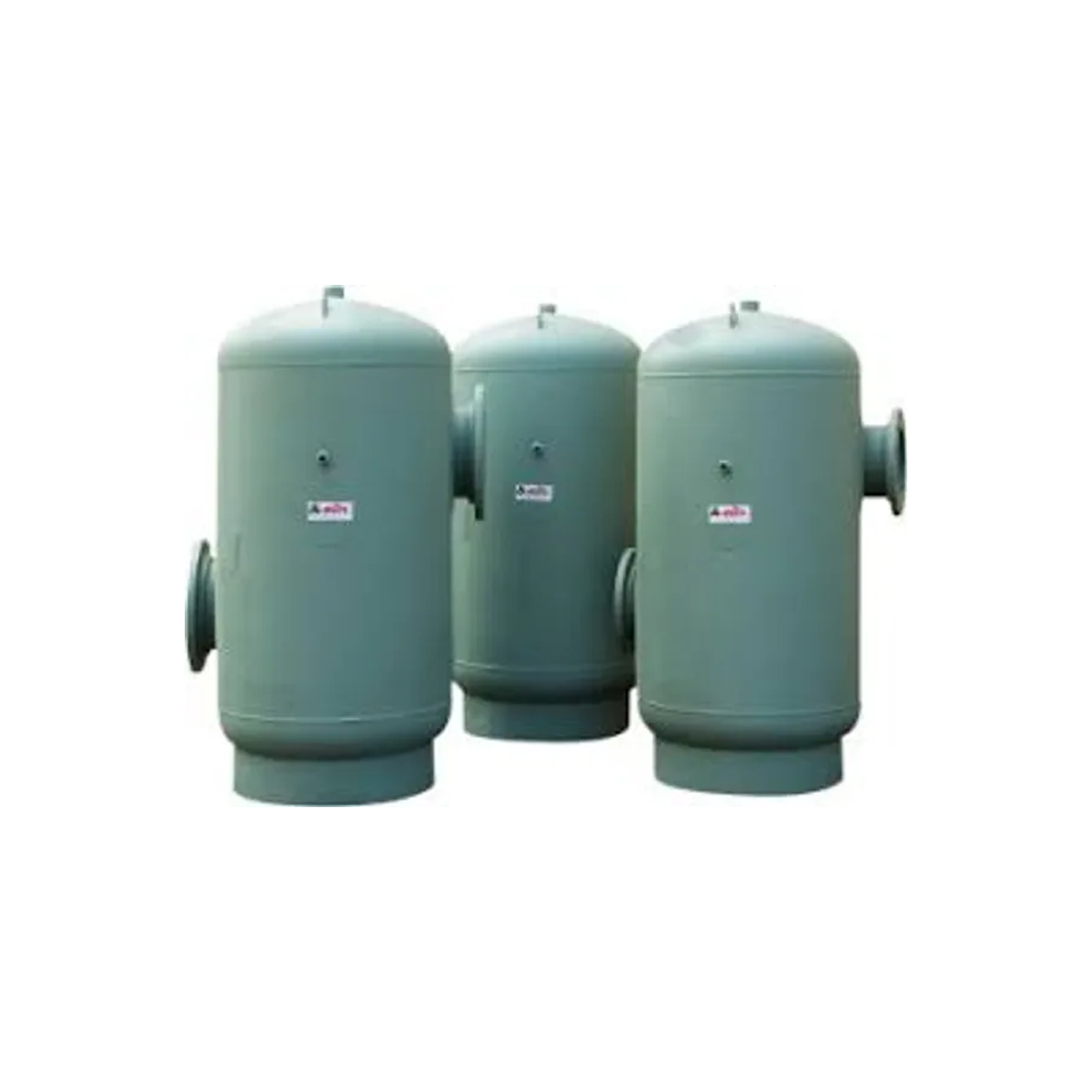

Our high-performance ASME Air Separator ensures your hydronic systems run smoothly and efficiently. These units remove trapped air to prevent system noise and expensive pump damage. Every unit follows the strict ASME Code Section VIII, Division 1 standards. We provide both UM and U stamps to guarantee the highest safety levels for your facility.
Technical Reliability of the ASME Air Separator
We use heavy-duty carbon steel construction for every tank in this series. This material handles extreme industrial conditions without failing. These separators manage a maximum working temperature of +375°F (+190°C). This makes them perfect for high-temperature heating applications.
The pressure ratings provide great flexibility for various system designs. Most models handle up to 125 psi. However, the smaller ASL and ASW-050 models manage up to 150 psi.
