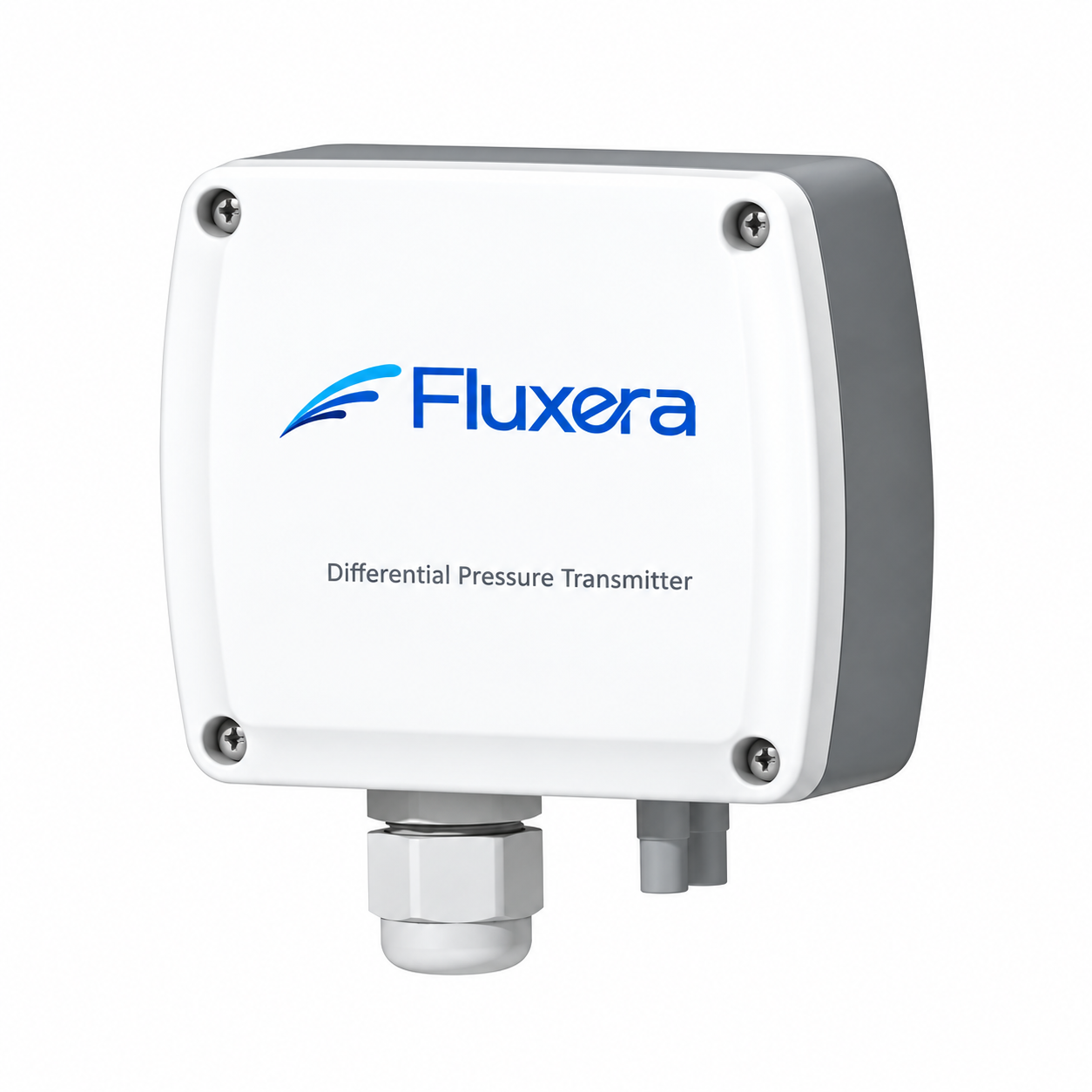

DPTL610 / Air Diff. Press. Transmitter, 0-2500 Pa, Output 0–5 V, 0–10 V, or 4–20 mA
250.0 AED
Specifications:
- Medium: non-combustible, non-corrosive air, insensitive to
moisture, dust, condensation and oil - Working Temp.: -20~70°C
- Medium Temp.: 0~60°C
- Temp. Compensation: 0~50°C
- Range: 25Pa(±12.5Pa) ~10kPa(±5kPa)
- Accuracy: ±1.0%FS (±2.0%FS@25Pa range)
- Long term stability: ±0.5%FS/Year
- Thermal effect: <0.05%FS/°C (zero), <0.08%FS/°C (FS)
- Response Time: 0.5/1/2/5s, can be set by DIP switches
- Zero set: easy to reset by external key
- Process Connection: 5mm ID tubing
- Display: 5 digits LCD, size 44x18mm, with unit indication
- Units: 5 units, selected by DIP switches
- Output: 0~5V/0~10V/4~20mA(2 or 3 wires), RS485/Modbus
- Output Load: ≤500Ω (current), ≥2kΩ (voltage)
- Power: Voltage: 16~28VAC/ 16~35VDC
- Current: 18.5~35VDC (RL=500Ω); 8.5~35VDC (RL=0Ω)
- Housing: PC, fire retardant UL94V-0
- Protection: IP65
- Weight: 180g
- Approval: CE
- Accessories: flush mount panel (model DPTL-A), can be
ordered separately
- Description
- Additional information
- DPTL Differential Pressure Transmitter
- EMCT Product Catalogue 2026
DPTL Differential Pressure Transmitter
The DPTL Pressure Transmitter offers a reliable solution for monitoring differential pressure in air systems. This industrial-grade sensor handles non-combustible and non-corrosive gases with high precision. It is insensitive to dust, moisture, and oil, making it perfect for HVAC and cleanroom environments. High-performance building automation systems require steady data, and this transmitter delivers exactly that.
This model provides a wide measuring range from 25Pa up to 10kPa. It features a ±1.0% full-scale accuracy, ensuring your ventilation systems operate within safe limits. The housing consists of fire-retardant polycarbonate (UL94V-0) for maximum safety. With an IP65 protection rating, the internal electronics stay safe from environmental contaminants. This durability makes it a top choice for industrial facilities and medical laboratories. To understand the importance of air quality monitoring, you can read the official EPA guidelines on indoor air.
Advanced Features of the DPTL Pressure Transmitter
The DPTL Pressure Transmitter includes a large 5-digit LCD screen. This display provides instant visual updates with clear unit indications. You can easily reset the zero point using an external key, which simplifies the calibration process. The device also supports multiple output signals, including 4-20mA, 0-10V, and RS485 Modbus RTU protocols. This allows for seamless integration into any PLC or Building Management System (BMS).
Simple Installation and Maintenance
Installing this device is fast and efficient. It uses standard 5mm ID tubing for process connections. The lightweight 180g design allows for easy mounting on walls or panels. If you need a sleek look, you can order the optional flush mount panel (Model DPTL-A). This accessory allows the unit to sit flat against laboratory or hospital walls. Regular maintenance is easy because the zero-set button is accessible from the outside.
Ideal Industry Applications
This transmitter excels in various professional settings:
-
Cleanrooms: Maintaining precise pressure levels to prevent contamination.
-
Data Centers: Monitoring airflow to ensure server cooling efficiency.
-
Hospitals: Managing isolation room pressures for patient safety.
-
Industrial HVAC: Controlling fan speeds and monitoring filter status.
| Weight | 0.180 kg |
|---|
